22 Series

Tool Manufacturing

The 22 Series convincingly addresses the current requirements on precision, dynamics and high technical availability in the complete machining of large-volume components such as electric motor and transmission housings, oil sumps and chassis components. The foundation for this is a machine platform with a mobile gantry design. This significantly increases rigidity for even more precise machining results.

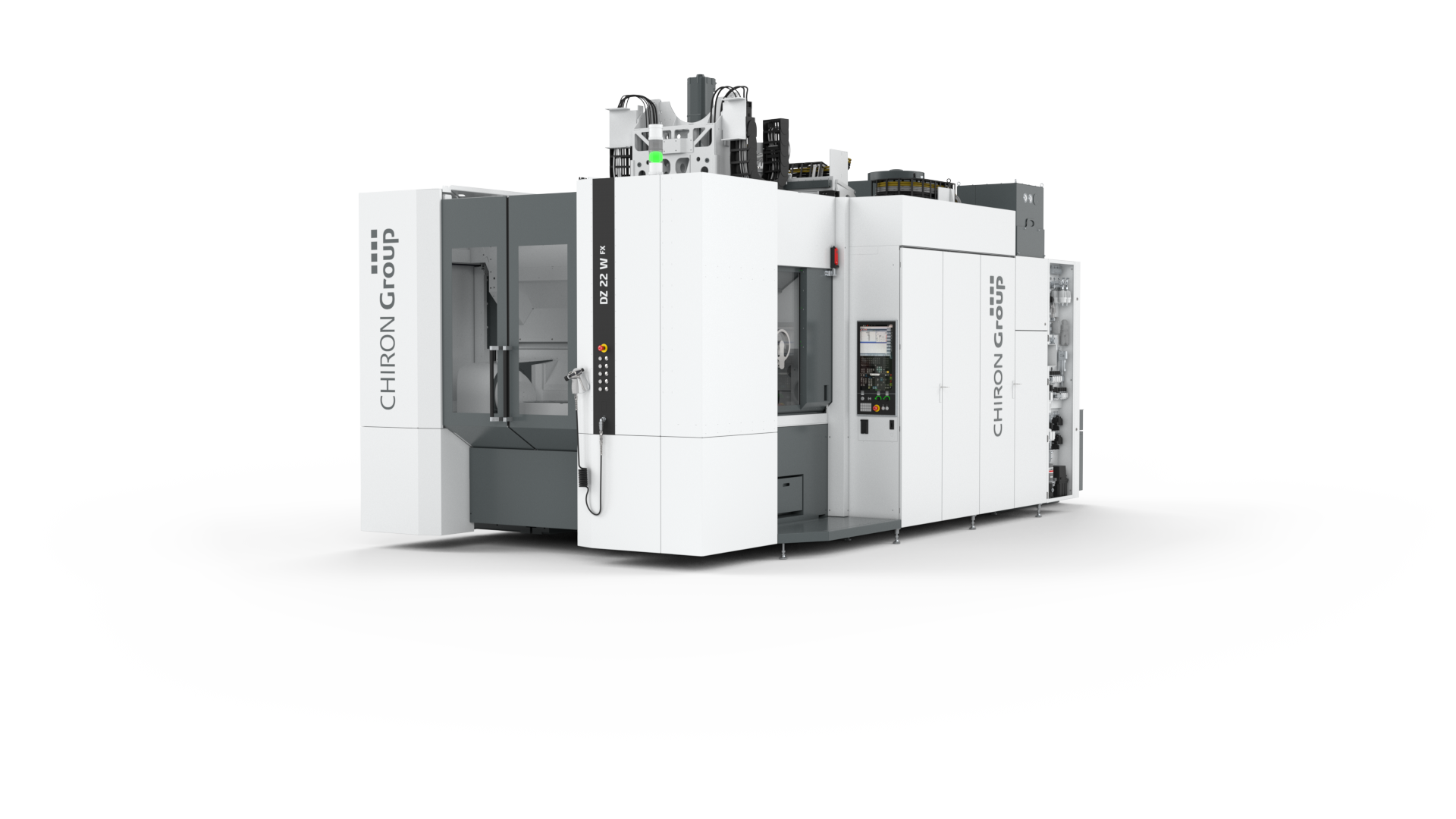

Using the DZ 22 W five axis with workpiece changer and a spindle distance of 600 mm, two different main spindles can be operated, depending on the task at hand: the high-speed spindle for workpieces made from aluminum or aluminum alloys, and the high-torque spindle for hard-to-machine materials and large tools. The series also includes configurations for direct loading and a HSK-A100 interface.

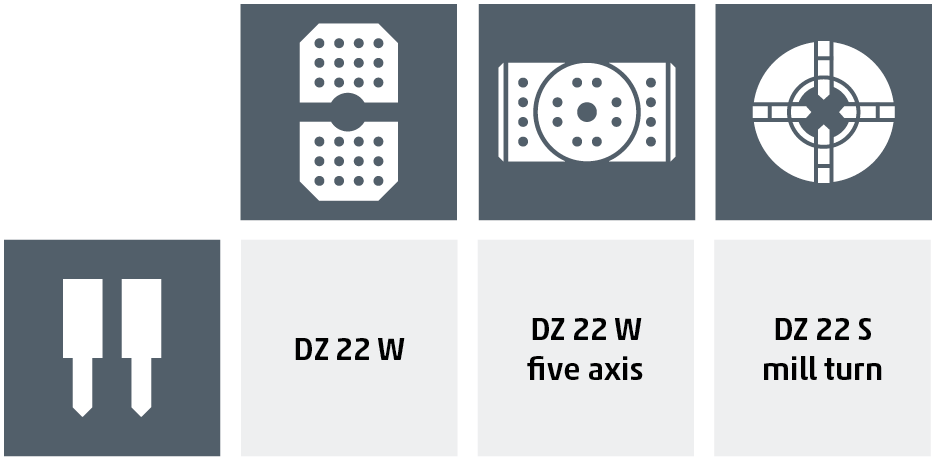

Machine variants


  • Double spindle machining of large components in short cycle times

  • Rigid machine bed with a mobile gantry construction for high precision

  • Active cooling of all components

  • Compact, flexible machine layout

  • Many tools for versatile machining

  • Tool change during machine operation for maximum output

  • Process is easily visible thanks to the separation of operating and loading sides

  • Workpiece changer for loading and unloading during machine operation

  • Intuitive operation via TouchLine

  • Easy automation via robots or gantry

»Machining complex workpieces – precise, easy set-up, productive.«

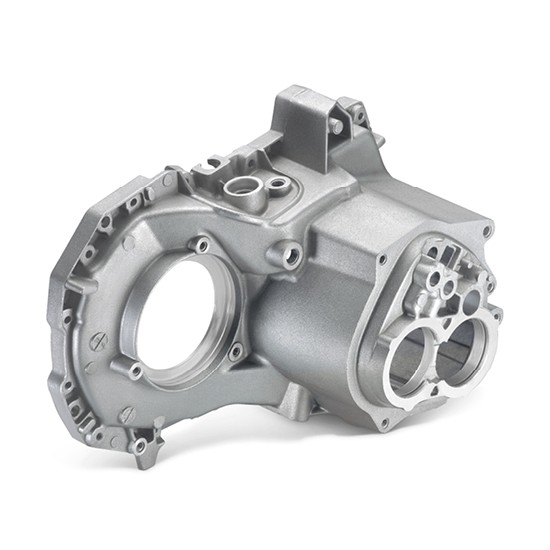

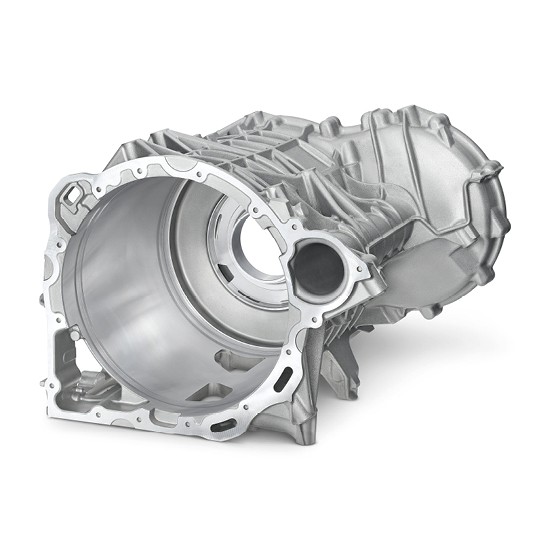

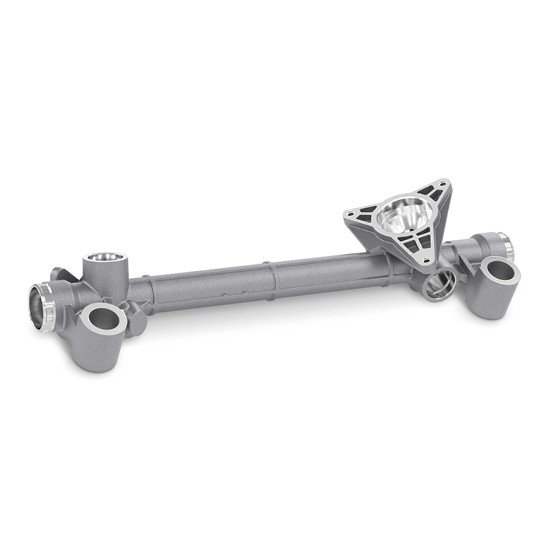

Example applications
